Name: EC HVAC LWGA 175mm High Pressure Rear Centrifugal Industrial Radial Ventilation Fan 110V 220V Centrifugal Blower
Brand: EC HVAC LWGA 175mm High Pressure Rear Centrifugal Industrial Radial Ventilation Fan 110V 220V Centrifugal Blower
SKU: LWGA 175mm
Price: 1 USD
Availability: InStock
Rating: 4.6 (177 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Type: Radial Fan

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Customized support: OEM, ODM, OBM

Electric Current Type: AC

Blade Material: aluminum alloy

Mounting: Ceiling Fan

Model Number: LWGA 175mm

Warranty: 1 Year

After-sales Service Provided: Free spare parts

Centrifugal fan: high pressure backward centrifugal fan

Speed control: 0~10V/ PWM

Impeller material: Propylene with glass fiber reinforced

Bearing: Ball Bearing

Approvals: CE,CCC,RoHS

Motor type: EC external rotor motor

Amb,Temp: -30 to +60â„ƒ

Insulation: B

Application: HVAC,FCU,FFU

Protection: Tech out put /Over voltage protection /Over loading protection

Zertifizierung: ce, CCC, RoHS, Other

Grundinformation

Zertifizierung: ce, CCC, RoHS, Other

Model Number: LWGA 175mm

Zahlung und Versand AGB

Packaging Details: High strength cartons with polyfoam , and packed on pallet .

Supply Ability: 100000 Piece/Pieces per Month

Produkt-Beschreibung

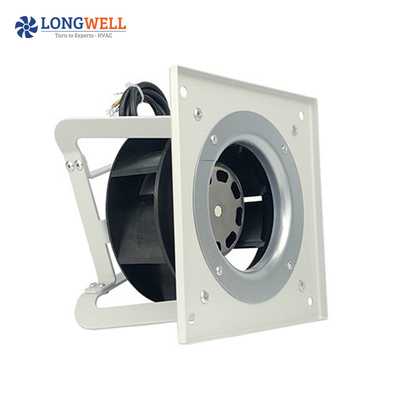

LWGA 175mm EC high pressure backward centrifugal fan 110V 220V industrial ventilation radial fan centrifugal blower

Product Description

Model Number :	LWGA -175mm EC backward curved centrifugal fan WITH FRAME
Motor Type :	BLEC External rotor motor	Blade Material :	Plastic
Operation Model :	S1	Insulation Class :	IP 55
Speed control:	PWM / 0~10V	Insulation Class:	F
Operation Temperature :	-25 ℃ ~ +60 ℃

Product Overview
1	Centrifugal Blower Sizes	133mm - 400mm (or Customized)
2	Centrifugal Fan Sizes	133mm - 630mm (or Customized)
3	Motor Types	AC Motor
		BLDC Motor
		ECM Motor
4	Voltage	AC Motor - AC Input: 115v,220v,230v,380v,400v
		BLDC Motor - DC Input: 12v,24v,48v,310v
		ECM Motor - AC Input: 210v,220v,230v,380V
5	Power	Up to 2300W (or Customized)
6	Speed	Up to 4000RPM (or Customized)
7	Air Flow	Up to 15000m³/h (or Customized)
8	Speed control	Speed Controller (AC) or PWM/0 - 10V Input (DC & EC)
General Characters
1	Direction of Air Flow	All around
2	Insulation Class	Class B
3	Insulation Resistance	50 Mega Ohm minimum at 1000VDC
3	Insulation Resistance	Between frame and (+) terminal
4	Protection Type	IP55

Custom Service

Product Application

Certifications
